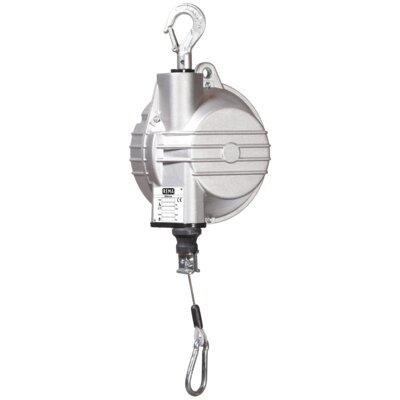

With the help of the REMA spring balancers, electric and pneumatic tools can be operated with minimal weight and posioned at the correct height.

Properties

  • Aluminum body.
  • Specially designed coil spring ensures a low-noise run.
  • Adjustable load capacity (button).
  • Carabiner attached.
  • Extra safety suspension, for safety chain.
  • Flexible stainless steel cable.
  • Resistance-free and wear-resistant cable guide.
  • Adjustable cable length.
  • Insulated suspension system.
  • Fixation at a point.
  • Bearing conical drum, this keeps the tension always the same.
  • Adjustable capacity through a screw.
  • Fixation of the desired cable length in several places by separate remote control.
  • Rotatable top hook with safety latch.

Applications

  • For working with heavy electric and pneumatic tools, measuring equipment etc.

On request:

  • Various spring balancers are also available in ATEX version. Ex II 2 GDc II T 85 ° (T 6).
  • Marking: According to standard, CE-marked
  • Standard: EN 12100, DIN-EN 15112
Select a row from the table below, then click the add to quote button
Part Code Code Model Length
m
Max. working load
kg
Weight
kg
0629354 8717365000157 9354 2 4-7 5
0629355 8717365000164 9355 2 7-10 5,5
0629356 8717365000171 9356 2 10-14 5,5
0629357 8717365000188 9357 2 14-18 6,5
0629358 8717365000195 9358 2 18-22 6
0629359 8717365000201 9359 2 22-25 6,6
0629361 8717365000218 9361* 2 10-15 10,3
0629362 8717365000225 9362* 2 15-20 10,6
0629363 8717365000232 9363* 2 20-25 11,2
0629364 8717365000577 9364* 2 25-30 11,5
0629365 8717365000249 9365* 2 30-35 11,8
0629366 8717365000256 9366* 2 35-45 12,4
0629367 8717365000263 9367* 2 45-55 12,5
0629368 8717365000270 9368* 2 55-65 13,6
0629369 8717365000287 9369* 2 65-75 14,5
0629370 8717365000294 9370* 2 75-90 17,3
0629371 8717365000300 9371* 2 90-105 18

* Blocking device; the spring can be tensioned at any height, after mounting the tool.
