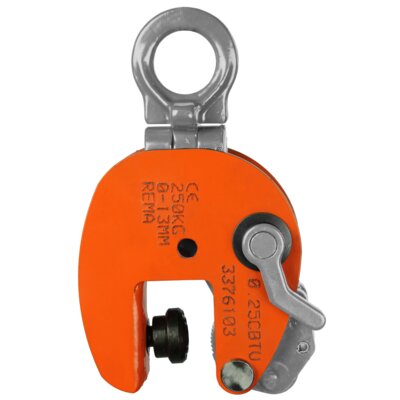

For vertical lifting and transporting (thin) sheet metal. Special movable pivot in the clamp provide extra pressure on the material, eliminating the risk of slippage.

  • Features: Movable pivots. Universal lifting eye.
  • Marking: According to standard, CE-marked
  • Standard: EN 12100, EN 13155
  • Safety factor: 5
Select a row from the table below, then click the add to quote button
Part Code Code WLL Model Jaw opening
mm
A
mm
B
mm
C
mm
D
mm
E
mm
F
mm
G
mm
Weight
3364100 8717365105142 0,25 CBTU-0.25 0-13 53 30 200 110 50 38 10,5 2
