Mechanical properties

  • Aluminum housing
  • Alloy steel pulling unit
  • Test load 2 x WLL (without losing accuracy)
  • Safety factor 5 x WLL
  • International Protection Rating / Ingress Protection: IP65 (EN60529)

Electrical specifications

  • Alkaline battery (3 x AA type)
  • Battery operating time about 180 hours

Electronic specifications

  • Operating temperature range between -5° C to + 55° C
  • Accuracy up to approx. 0.1% of the reading value
  • Battery indicator

RX-PORT electrical specifications

  • Alkaline batteries (3 x AA type)
  • Stand time approx. 150 hours
  • Battery indicator

RX-PORT electronic specifications

  • LCD display with 5 positions, 12 mm digit height
  • 868 MHz frequency control
  • Operating temperature range -5 ° C to + 55 ° C
  • RS232 port for printer or PC connection

TX-LOAD electrical specifications

  • Transmission range max. 50m

TX-LOAD electronic specifications

  • 868 MHz frequency control

Standard delivery

  • Bow shackles
  • Remote control

Option

  • Bow shackle from 10T
  • Marking: According to standard, CE-marked
  • Standard: EN 13889, EN 12100, EN 13155

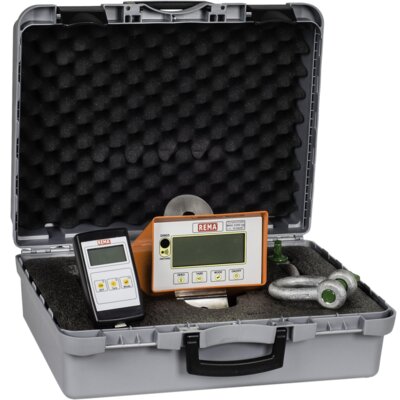

  • Note: Includes plastic case, manual and calibration report.
  • Safety factor: 5
Select a row from the table below, then click the add to quote button
Part Code Code WLL Model Shackle Resolution
kg
A
mm
B
mm
C
mm
D
mm
E
mm
F
mm
Weight
1513005 8717365111563 3,2 DSD05TX/RX-3.2T 3,25t in. 1 199 69 130 25 269 20 4,7
1513007 8717365111570 6,3 DSD05TX/RX-6.3T 6,5t in. 2 213 69 144 35 348 26 7
1513009 8717365112010 10 DSD05TX/RX-10.0T 12t ex. 5 265 100 181 50 455 36 9,6
