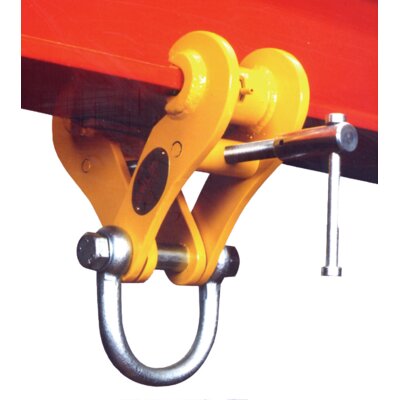

Adjustable spindle beam clamp for establishing a semi-permanent suspension point on angle steels.

Properties

  • Robust design.
  • Wide jaw openings.
  • Easy mounting.
  • Marking: According to standard, CE-marked
  • Standard: EN 12100, EN 13157
    Select a row from the table below, then click the add to quote button
    Part Code Code WLL Beam width
    mm
    Model A
    mm
    B
    mm
    C
    mm
    D
    mm
    E
    mm
    G
    mm
    H
    mm
    J
    mm
    K
    mm
    L
    mm
    Weight
    3503001 8717365016837 3 89-305 S5 134 93 6 95 25,4 348 20 102 359 410 10
    3503003 8717365016844 3 89-305 S5A 134 116 10 116 25,4 348 25 110 375 410 13,8
    3503005 8717365020407 5 89-305 S6 134 116 10 116 25,4 348 25 110 375 410 13,8
    3503007 8717365016851 5 89-305 S6A 134 116 12,5 116 25,4 348 25 110 375 410 15,2
    3503009 8717365016868 10 89-305 S11 134 116 20 118 25,4 348 32 112 391 410 20,6
