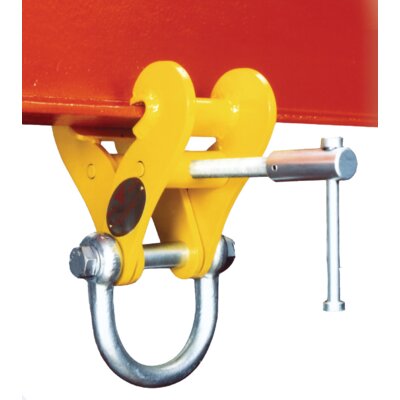

Adjustable spindle beam clamp for establishing a semi-permanent suspension point when loading at an angle.

Properties

  • Compact design and low tare weight.
  • Easy mounting.
  • Marking: According to standard, CE-marked
  • Standard: EN 13157, EN 12100
    Select a row from the table below, then click the add to quote button
    Part Code Code WLL Beam width
    mm
    Model A
    mm
    B
    mm
    C
    mm
    D
    mm
    E
    mm
    G
    mm
    H
    mm
    J
    mm
    K
    mm
    Weight
    3502001 8717365016721 2 76-190 S1* 125 3 22 90 188 275 20 77 250 4
    3502003 8717365016738 3 76-190 S2* 125 6 22 90 188 275 20 77 250 5,1
    3502005 8717365016745 3 76-190 S2A* 130 12,5 22 102 250 275 20 103 268 7,4
    3502007 8717365016752 4 150-254 S3* 130 10 22 112 327 410 25 98 332 10,4
    3502009 8717365016769 5 76-190 S3X 130 12,5 22 116 237 295 25 110 300 9
    3502011 8717365016776 5 150-305 S3A* 140 12,5 32 116 373 410 25 110 360 14,9
    3502013 8717365016790 6 203-457 S4S 140 12,5 42 116 498 560 25 110 459 18,8
    3502012 8717365016783 7 101-228 S4 140 12,5 42 118 323 410 32 120 382 17,5
    3502015 8717365016806 10 203-457 S4A 140 20 42 118 498 560 32 112 476 27,3
    3502017 8717365016813 15 203-457 S12 170 20 50 116,5 611 660 40 185 616 53,8
    3502019 8717365016820 15 406-610 S14 175 20 63 116,5 795 810 40 185 673 63
