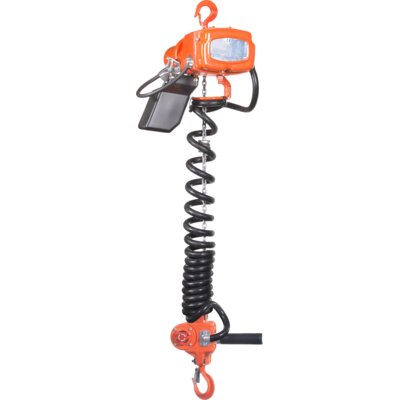

The ALHVDH 230 V electric chain hoist is a compact chain hoist.
The ALHVDH has a very low own weight (aluminum house). Can be used in many applications due to the high duty cycle in combination with a high lifting speed.

Properties

  • Operation at the lower hook.
  • Variable speed adjustable by turning the handle.
  • Spiral control cable around the load chain.
  • Slip clutch against overload.
  • Self locking brake that holds the load at any desired height.
  • In case of overload, the hooks will gradually bend and do not suddenly break off.
  • Galvanized load chain, class DAT (Grade 8).

Technical specification:

  • Insulation class B.
  • FEM 9.511 motor: 1Am.
  • Power supply 230VAC.
  • Protection class IP54.

Standard delivery

  • 2,5 m lifting height (max distance between top and lower hook).
  • 4 m power cable.
  • Plastic chain container for 3 m lifting height.
  • Trolley not included.

Option

  • Push trolley.
  • Marking: CE-marked
Select a row from the table below, then click the add to quote button
Part Code Code WLL
ton
Model Motor
kW
Max. lifting height
m
Load Chain dia x pitch
mm
Chain fall Lifting speed
m/min.
Duty rating % ED Construction height
mm
Weight
kg
0513205 8717365109348 0,25 ALHVDH/250 0,6 2,5 4.0 x 12 1 0.9~10 25 673 22
