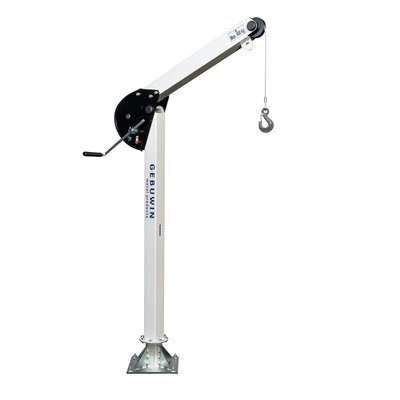

Portable Swivel davit SD125-250-500

Portable ergonomic modern design swivel davit for lifting.
Easily foldable, ready to use in a few seconds.
Integrated winch.
Including 8 meter wire rope (d5 mm) with hook

Specifications:

  • Easy to transport, only 25 kg
  • 360 degrees rotation over a built in ball bearing
  • Maintenance free
  • Adjustable crank
  • The numbers in the product name correspond with the hoisting capacities on the first cable layer
  • Beam reach differs from 60cm, 80cm to 100cm

Optional:

  • zinc-plated finish (6 - 8 micron) (EV)
  • stainless steel grade SAE 316 (SST316)
  • ATEX certified (EX)

Accessories:

  • floor, wall and in-cement floor sockets
  • carry bag and rain protection cover
  • Finish: Standard paint finish in grey (RAL 7035) according to DIN 12944, C1M
  • Note: All models standard delivered with 5 mm wire rope, length 8 m.
  • Safety factor: 4:1
